overline Draw a line above data with a text above it
Call signature:

overline(xx, yy, txt=None, datadist=None, textdist=None, minlen=None)

Help text:

overline(xx, y, text), where xx is a 2-vector and y a scalar, draws a horizontal line just above (xx(1), y) to (xx(2), y) and places the given text over it.
overline(xx, yy, text), where both xx and yy are 2-vectors, draws the line just above the larger yy value and extends a vertical line down to the smaller yy value.
The whole thing is displaced by a distance overlinedist from the data, and the text placement uses the absolute value of textdist.
If overlinemin is non-zero, a vertical line is drawn on both ends.
The text argument may be omitted.
Optional arguments datadist, textdist, and minlen override global settings.

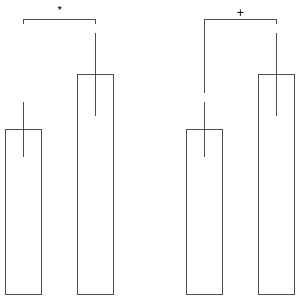

Example:

import qplot as qp

import numpy as np

qp.figure('overline', 3, 3)

xx = [1, 2]

yy = np.array([3, 4])

dy = np.array([.5, .75])

qp.bars(xx, yy, .5)

qp.errorbar(xx, yy, dy)

qp.overline(xx, np.max(yy+dy), '*')

xx = [3.5, 4.5]

qp.bars(xx, yy, .5)

qp.errorbar(xx, yy, dy)

qp.overline(xx, yy+dy, '+')
