QPlot: ymark

ymark Like mark, but with vertical collision avoidance

Call signature:

ymark(xx, yy, rx, ry=None)

Help text:

ymark(xx, yy, rx, ry) tries to draw marks at (xx, yy), but displaces marks vertically in steps of rx points to avoid collision within an ellipse with radii rx and ry. (Leaving out ry uses a circle with radius rx.)

Download pdf

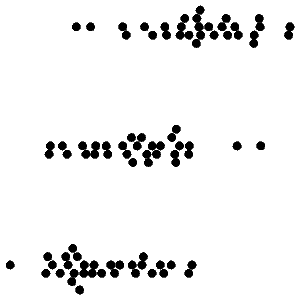

Example:

import qplot as qp

import numpy as np

qp.figure('ymark', 3, 3)

qp.marker('o', fill='solid')

for y in range(3):

xx = np.random.randn(30) + y

qp.ymark(xx, y + np.zeros_like(xx), rx=6)

Download source.
