QPlot: xmark

xmark Like mark, but with horizontal collision avoidance

Call signature:

xmark(xx, yy, rx, ry=None)

Help text:

xmark(xx, yy, rx, ry) tries to draw marks at (xx, yy), but displaces marks horizontally in steps of rx points to avoid collision within an ellipse with radii rx and ry. (Leaving out ry uses a circle with radius rx.)

Download pdf

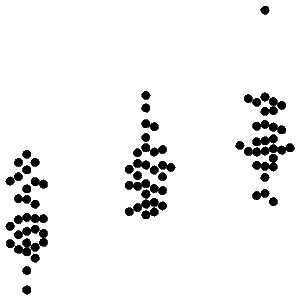

Example:

import qplot as qp

import numpy as np

qp.figure('xmark', 3, 3)

qp.marker('o', fill='solid')

for x in range(3):

yy = np.random.randn(30) + x

qp.xmark(x + np.zeros_like(yy), yy, rx=6)

Download source.
