imsc(data, rect=None, c0=None, c1=None, xx=None, yy=None, hard=False)
imsc(data) plots the data as an image using a lookup previously set by qlut. imsc(data, rect) specifies (x, y, w, h) rectangle for placement as for image. Alternatively, imsc(data, xx, yy) specifies X and Y coordinates for each column and row of the image. (Only the first and last coordinates are used; nonlinear scaling is not supported.) The color axis limits default to the min and max of the data.
Optional arguments c0 and c1 override those limits.

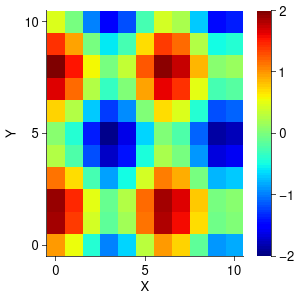

import qplot as qp
import numpy as np
qp.figure('imsc', 3, 3)
xx = np.tile(np.arange(11), (11,1))
yy = np.transpose(xx)
zz = np.cos(xx) + np.sin(yy)
qp.luts.set("jet", 100)
qp.imsc(zz, xx=xx, yy=yy, c0=-2, c1=2)
qp.xaxis('X', [0,5,10], y=-.5, lim=[-.5, 10.5])
qp.yaxis('Y', [0,5,10], x=-.5, lim=[-.5, 10.5])
qp.cbar(width=10)
qp.caxis()
