caligraph
Draw a variable-width line series in data space
Call signature:
caligraph(xx, yy, ww)
Help text:
caligraph(xx, yy, ww) plots the data yy vs xx. xx and yy are given in data coordinates. ww specifies the line width at each point, in postscript points.
The line is rendered in the current pen's color; dash patterns and cap and join styles are not used.
Download pdf

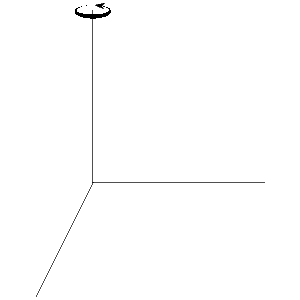

Example:
import qplot as qp
import numpy as np
qp.figure('caligraph', 3, 3)
qp.plot([0, 1], [0, 0])
qp.plot([0, 0], [0, 1])
qp.plot([0, -1/3], [0, -2/3])
phi = np.linspace(-.9*np.pi, .9*np.pi, 100)
xx = np.sin(phi)
yy = -np.cos(phi)
ww = 1.5*(1-yy)
xx = xx/10
yy = 1 + yy/30
qp.caligraph(xx, yy, ww)
qp.at(xx[-1], yy[-1], along=(xx[-1]-xx[-2], yy[-1]-yy[-2]))
qp.brush('k')
qp.arrow(6, 4, -2, 1.5)
qp.shrink(1,1)
Download source.
