qcaligraph
Draw a variable-width line series in data space
Help text:
qcaligraph(xx, yy, ww) plots the data yy vs xx. xx and yy are given in
data coordinates. ww specifies the line width at each point, in postscript
points.
The line is rendered in the current pen's color; dash patterns and cap
and join styles are not used.
Download pdf.

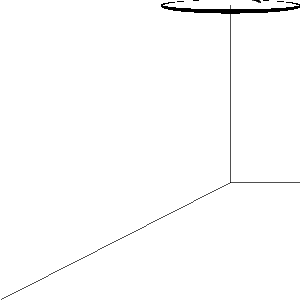

Example:
qfigure('qcaligraph', 3, 3)
qplot([0 1], [0 0]);
qplot([0 0], [0 1]);
qplot([0 -1/3], [0 -2/3]);
phi = [-.9*pi:.1:.9*pi];
xx = sin(phi);
yy = -cos(phi);
ww = 1.5*(1-yy);
xx=xx/10;
yy=1+yy/30;
qcaligraph(xx, yy, ww);
qat(xx(end), yy(end), xx(end)-xx(end-1), yy(end)-yy(end-1));
qbrush k
qarrow(6,4,-2,1.5);
qshrink(1,1);
Download source.
